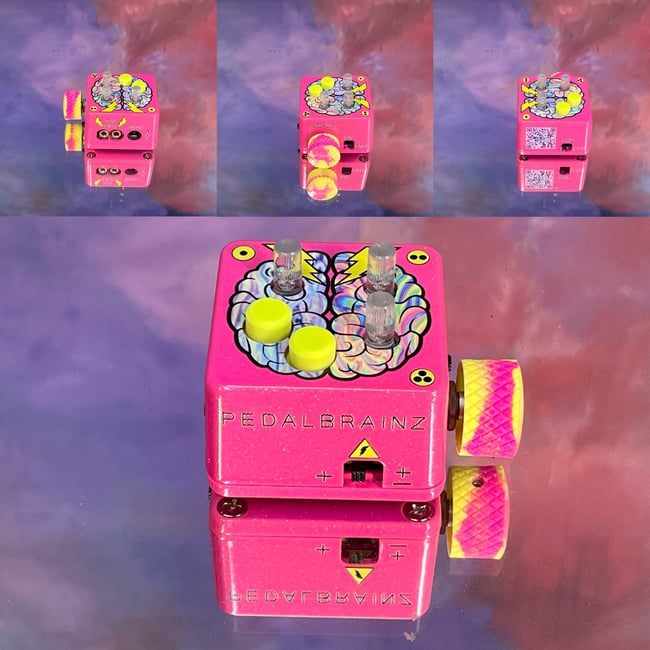

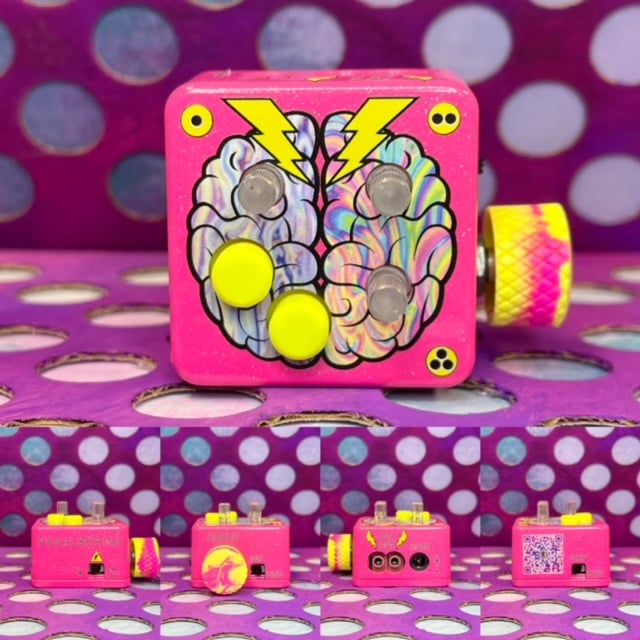

Pedal Brainz | Left Brain CV - PINK

The Left Brain is a light-controlled expression modulation pedal for effects and synths offering: dual CV outputs, unipolar/ bipolar operation, and the ability to invert scale direction.

Over 50 Modez of controllable expression, an expression pattern loop recorder, and a host of other features to harness the potential waiting in your effects pedals.

Details here:
https://pedalbrainz.com/leftbrain.html

3 Control Knobs: Adjust the properties of 50 light patterns.
EXP/EYE Switch: Choose between manual expression or engage the internal Eye to add light-based expression control.
CV Scale Knob: Variable control of the Maximum expression value.
CV Polarity Switch (Unipolar/ Bipolar):
Unipolar: 0 to 5V or
Bipolar: -5V to +5V
CV Scale Direction Switch: Selects between Standard (STD) or Inverted (INV) voltage scaling.
CV Dual 1/8" Output Jacks: Multiple Simultaneous Control Voltage Outputs.
DC Jack: 9V DC 60ma Tip Negative, Sleeve Positive.
USB Jack: Internal access to the Adafruit QTPY SAMD.
